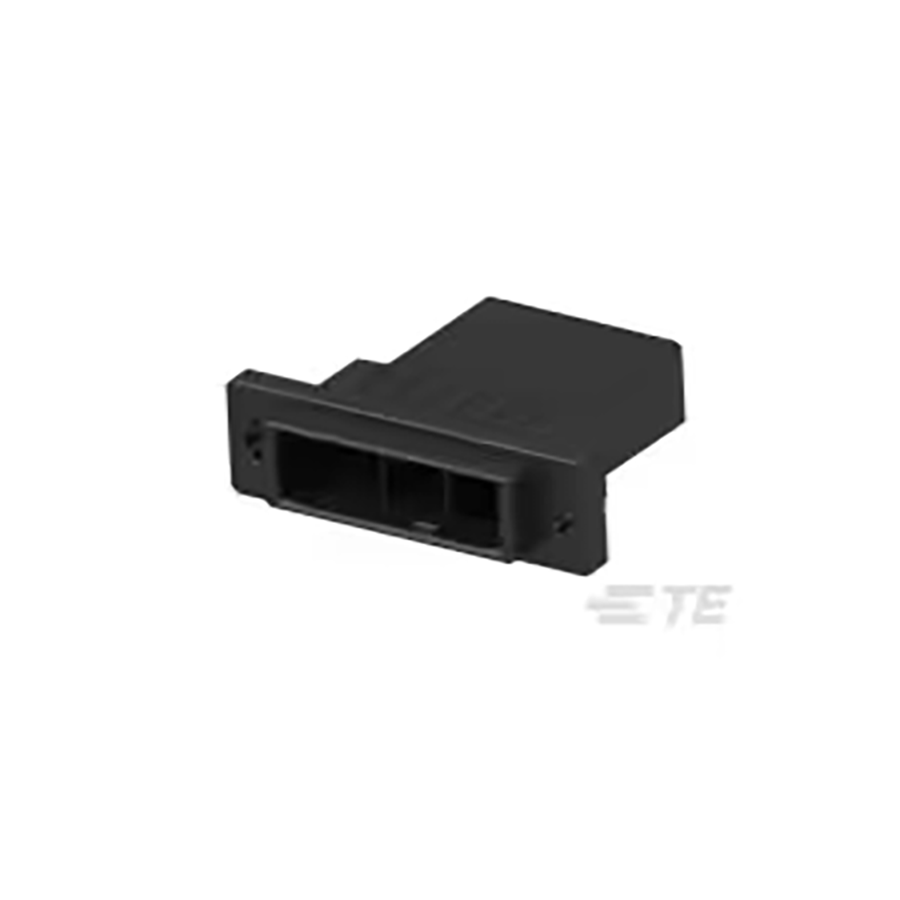

1-353047-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1-353047-3
Datasheet:
Description:
Headers and Wire Housings Panel Plug, Tab Number of Positions:3 Pitch:10.16 mm
| Parameter | Value |
|---|---|
| Length | 57 mm |
| Width | 16.5354 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 47 mm |
| Packaging | Bulk |
| Voltage Rating | 630 V |
| Depth | 47 mm |
| Halogen Free | Halogen Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 10.16 mm |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 630 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Plug, Tab |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Circuit Application | Power |
| Max Voltage Rating (AC) | 630 V |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 10 AWG |
| Housing Color | Black |
| VDE Tested | No |
| Preloaded | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 1556
Distributors
pcbx
pcbxUnit Price$1.07037
Ext.Price$1.07037
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.07037 | $1.07037 |
| 10 | $1.06715 | $10.67150 |
| 25 | $1.06394 | $26.59850 |
| 50 | $1.06074 | $53.03700 |
| 100 | $1.05755 | $105.75500 |
| 300 | $1.00315 | $300.94500 |
| 500 | $0.95154 | $475.77000 |
| 1000 | $0.71301 | $713.01000 |
